Steelage Titan Modular Vault Solution
Scalable modular vault system from Class C to AAA

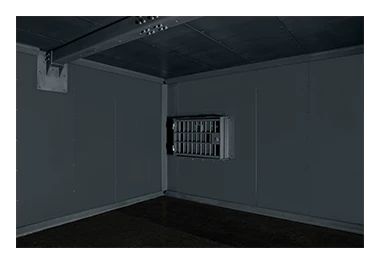

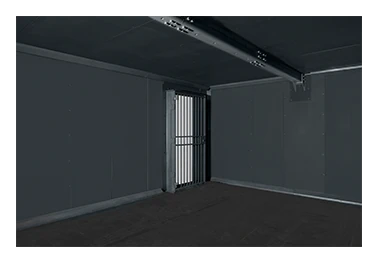

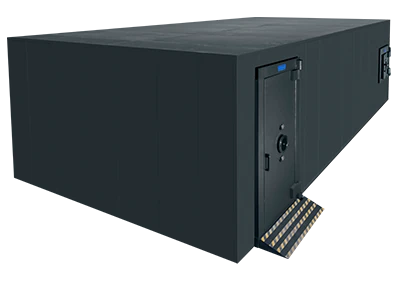

Steelage Titan is a modular vault solution designed for customized high-security storage rooms. Its six-sided modular panel construction enables site-specific installation, reduced wall thickness, maximized space usage and future expandability or relocation.
Best suited for
Key features
- Scalable and portable vault solution
- IS 17541 Class C to AAA

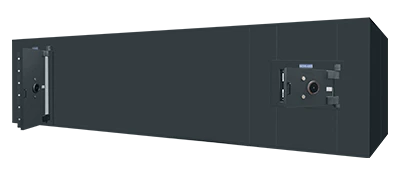

- Six-sided modular panel construction
- Reduced wall thickness for space efficiency
- Customizable to site needs
- Easy to install, expand, decrease and reuse
Protection / certification
IS 17541; Classes C, B, A, AA and AAA.
Lock options
Key lock standard; mechanical lock, combination lock, electronic lock or biometric lock optional.
Capacity
Custom vault solution; panel specifications by class.
Models
Class C, Class B, Class A, Class AA, Class AAA.
Model specifications
| Model / Variant | Certification / Class | Net / Approx Weight (kg) | Panel Thickness (mm) | Panel Height (mm) | Panel Width (mm) | Notes |
|---|---|---|---|---|---|---|
| Class C Panel | IS 17541 Class C | 300 | 70 | 2440 | 830 | Panel specifications; AA/AAA on request. |
| Class B Panel | IS 17541 Class B | 350 | 70 | 2440 | 830 | Panel specifications; AA/AAA on request. |
| Class A Panel | IS 17541 Class A | 750 | 100 | 2440 | 830 | Panel specifications; AA/AAA on request. |
| Class AA Panel | IS 17541 Class AA | Panel specifications; AA/AAA on request. | ||||
| Class AAA Panel | IS 17541 Class AAA | Panel specifications; AA/AAA on request. |
Consultation guidance
Confirm fit before final selection.
Product images are illustrative. Manufacturer specifications, dimensions, weights, finishes and available configurations may change. KYS will confirm the current product data and site requirements before quotation.
